Drying Oven

Constant Temp. Drying Oven

    ★High quality stainless steel chamber,safe and easy-to-clean.

    ★ Microprocessor controller with LCD display, accurate and reliable.

    ★ Equipped with multiple sets of heaters.

    ★ Equipped with leakage protection.

    ★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.

    ★ Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.

    ★ Convenient operation for air inlet,reasonable air duct structure,good temperature uniformity.

    ★ With inner glass door for easy observation.

    ★ Anti-hot handle

    Technical Parameters:



    1.Temp. Range:RT+10-300

    2.Temp. Fluctuation:±1℃.

    3.Temp.Resolution0.1℃

    4.Temp. Uniformity:Max. Temp.±3.5℃%.

    5.Power Supply:220V,50HZ



    Options:

    1. Multi-segment programmable control

    2. Built-in Printer

    3. RS485 interface

    Model
    Package Size  (L×W×H)cm
    Exterior   Size  (L×W×H)cm
    Chamber Size (L×W×H)cm
    Power Rating
    W
    Shelf

    Net/Gross kg)

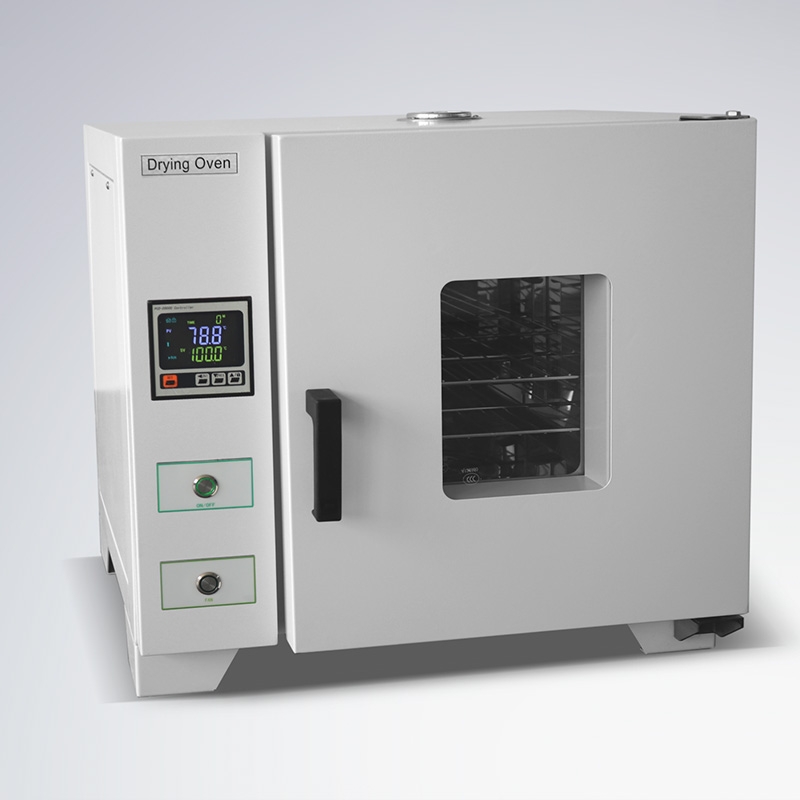

    LDO-300
    75×63×77
    64×50×60
    35×35×35
    1300
    2
    35 / 55
    LDO-400
    85×66×86
    73×53×69
    45×40×45
    2000
    2
    50 / 80

    LDO-500
    90×76×98
    78×69×80
    50×50×55
    2500
    2
    75 / 110

    LDO-600
    100×86×110
    88×73×95
    60×60×70
    3500
    2
    110 / 150
