Anaerobic Workstations

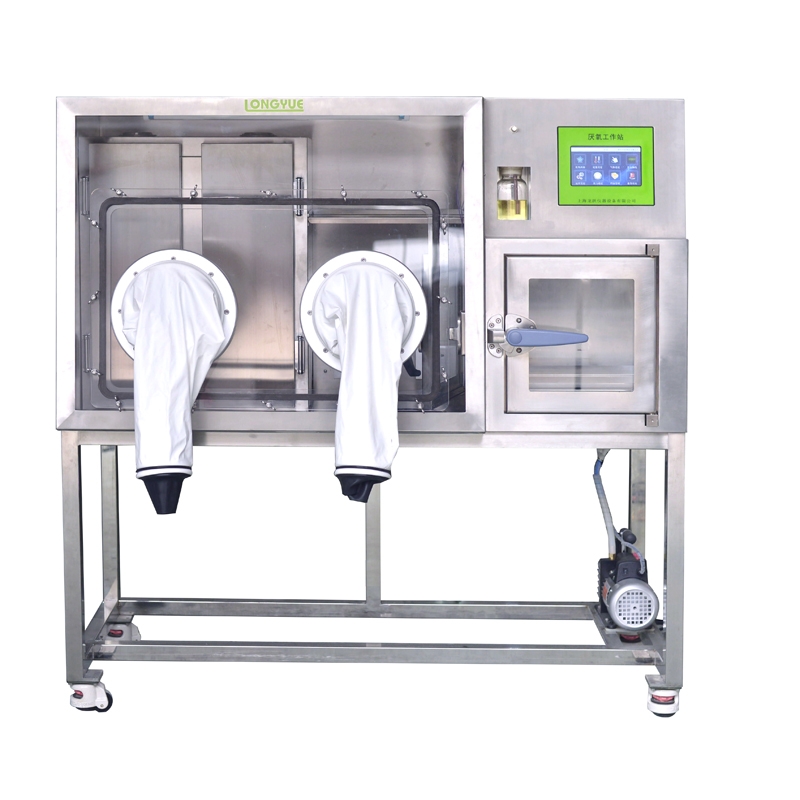

LAI-D2 Anaerobic Workstation

    ★ This workstation integrates CO2, Constant temperature and humidity, anaerobic incubator whole.
    ★ Can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
     ★ Fully automatic humidity control system to avoid drying of the Petri dishes.
     ★ Sample transfer: can transfer 40 pcs of 90mm plates at a time, single dish transfer device is optional.
    ★ Available with automatic sleeve gassing system operated by foot-switch, so you can control vacuum and Nitrogen gas filling efficiently.Equipped with standard external vacuum pump.
    ★ Using high-efficiency palladium catalyst to keep the oxygen concentration less than 0.1% without frequent activation.
    ★ UV lamp for sterilization.
    ★ Full-automatic control for gas replacement path, with positive pressure and negative pressure protection.
    ★ Can perform CO2 , humidity and temperature control.
    ★ Unique oil bottle type pressure relief design, protects internal positive pressure and prevents air leakage.
    ★With a number of low pressure, over temperature protection devices.
    ★The whole front cover can be lifted off for placing large instruments or thorough cleaning.
    ★Equipped with standard power socket.
    ★ Touch screen directly displays the oxygen percentage of the operating room, easy for observation.
    ★. Latex gloves for comfortable and flexible operation.
    ★Bare-hand operating system is optional. Ensure comfortable operation with no skin allergies.
    Model
    LAI-D1
    LAI-D2
     Time for creating anaerobic state in sample chamber
    5 minutes
    Time for creating anaerobic state in operation chamber
    1hr
    Anaerobic environment maintenance time
    12hrs(when no supply of mixed gas)

    Temperature Range

    RT+3~60℃
    Temperature Stability
    ±0.3℃












    Temperature Uniformity
    ±1℃
    CO Range
    020%
    CO2  Control Accuracy
    ±0.1%(imported sensor)
    Humidity Control Range
    50~90%RH
    Humidity Fluctuation
    ±3%RH
    Power Rating
    1500W
    Power Supply
    AC 220V,50HZ(can customized)
    Interior Chamber Size (W×D×H)cm
    42×29×47.5
    Operation Chamber Size (W×D×H)cm
    95×67×75
    Sampling chamber size (W×D×H)cm
    40×30×32
    Shell material
    Spray treatment on high quality steel plate

    All 304 stainless steel
