Drying Oven

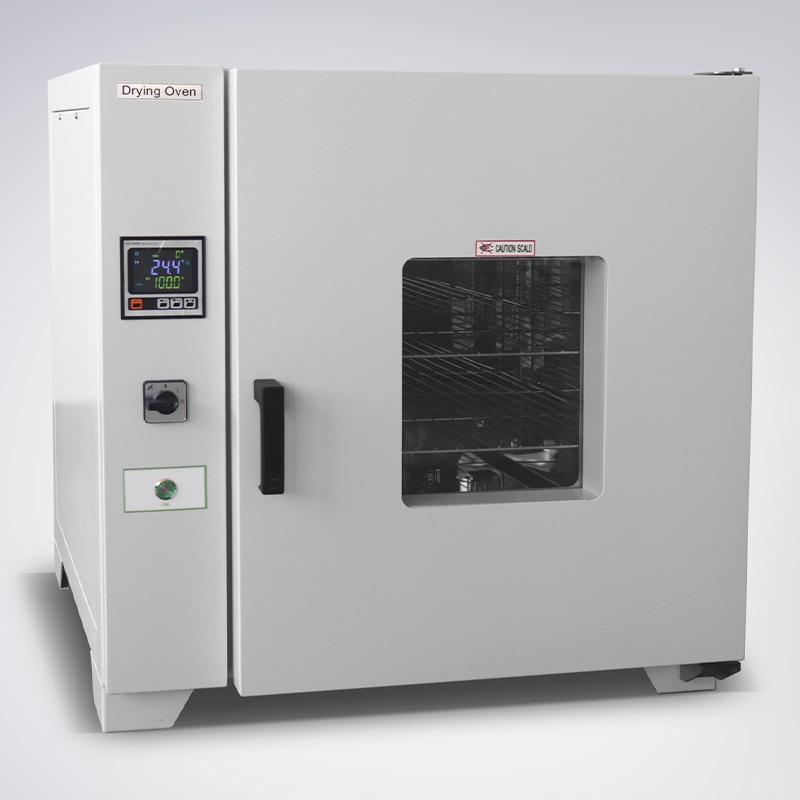

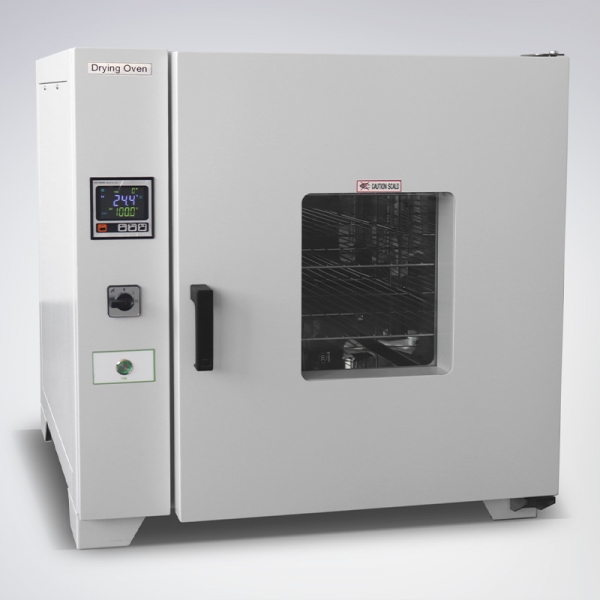

Benchtop Dual Flow Drying Oven

    ★ Equipped with a fan switch.

    LDO-101 series are equipped with multiple sets of heaters and adopted the switch to select the grade according to the heating speed and operating temperature.

    Forced air convection, good temperature uniformity.

    Microprocessor controller(with temperature correction and timing function), accurate and reliable.

    Large(2.2 inch) LCD screen display

    High quality stainless steel chamber, removable shelf, easy-to-clean.

    Equipped with leakage protection and a spare mechanical thermostat to ensure the product work normally even the main temperature control failed.

    Designed with a transparent window made of reinforced

    tempered glass, easy observation.

    Anti-hot handle



    Options:

    1.      Multi-segment programmable control

    2.      Built-in Printer

    3.      RS485 interface

    Model

    LDO-101-0

    LDO-101-1

    LDO-101-2

    LDO-101-3

    LDO-101-4

    LDO-101-5

    Chamber Volume

    43L

    81L

    138L

    252L

    640L

    960L

    Temp. Range

    RT+5300

    Temp. Stability

    ±1

    Temp. Uniformity

    ±2.5%

    Timing Range

    19999min

    Power Supply

    AC220V,50HZ

    AC380V,50HZ

    Grid Racks (Std/Max)

    2/4

    2/6

    3/7

    3/10

    4/15

    5/18

    Power Rating

    1300W

    2000W

    2500W

    3500W

    5500W

    7000W

    Chamber Size (W×D×H) cm

    35×35×35

    45×40×45

    50×50×55

    60×60×70

    80×80×100

    100×80×120

    Exterior Size(W×D×H)cm

    63×52×60

    73×53×69

    78×63×80

    88×73×95

    108×93×128

    128×93×148


    Would you like to have more information or have questions?

    *
