Water Bath

LWB Warter Bath

    Application:
    Suitable for medical institutions, universities, research institutes,
    chemical, dyeing, and other industries‘ laboratory departments
    for distillation, drying, concentration, and constant temperature
    heating of chemical reagents and biological products.
    Features
    ★ The outer shell is made of corrosion-resistant stainless steel,
    stamped and formed, offering advantages such as chemical corrosion resistance, impact
    resistance, good wear resistance, and an aesthetically pleasing appearance. The inner tank is

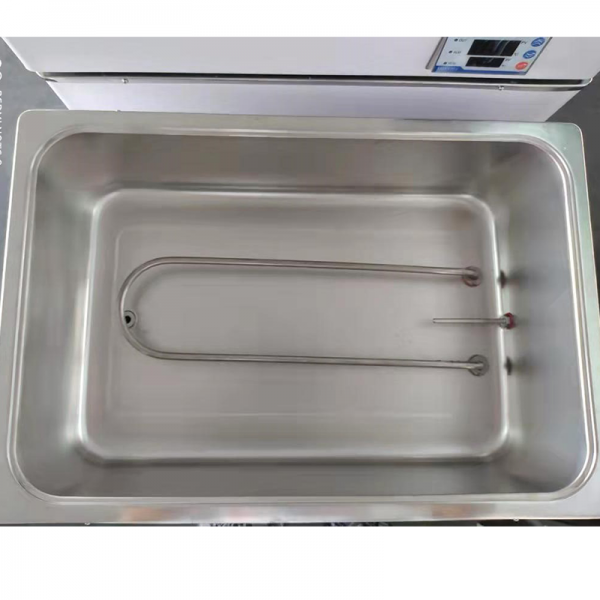

    made of 304 stainless steel, formed by a single stamping process, without welding marks, easy
    to clean, and resistant to acid and alkali corrosion.
    ★ Uses PID temperature control method, providing high control accuracy and fast heating
    speed. It features five buttons for setting: set button, increase button, decrease button, manual
    heating start/stop button, and self-test button.
    ★Includes overheat protection, over-temperature alarm, heating setpoint lock, electrical
    component self-check, and leakage protection.
    ★ Protects the system in case of dry boiling or failure of both control systems. It also includes
    a self-calibration function for adjusting the working temperature of the instrument.



    Description

    One hole

    1 row, 2 holes

    1 row, 4 holes

    1 row, 6 holes

    1row, 8 holes

    2 rows, 4 holes

    2 rows, 6 holes

    2 rows, 8 holes

    Model

    LWB-11

    LWB-12

    LWB-14

    LWB-16

    LWB-18

    LWB-24

    LWB-26

    LWB-28

    Power RatingW

    300

    600

    1000

    1500

    1800

    800

    1200

    1500

    Chamber Size (W×D×H) cm

    16×16×9

    30×18×9

    32×32×9

    92×17×9

    122×17×9

    32×32×9

    42×32×9

    61×31×9

    Exterior Size(W×D×H)cm

    21×20×21

    34×20×21

    35×35×21

    96×20×21

    123×20×21

    35×35×21

    51×35×21

    63×35×21

    Power Supply

    220V±10%50HZ±2%

    Temp. Range

    RT+599.9

    Temp. Fluctuation

    ±0.5

    Temp. Uniformity

    ±0.5

    Sensor

    Thermistor

    Safety

    Overtemperature Alarm, Short Circuit Protection, Overheat Protection, Audible and Visual Alarm

    NW/GWkg

    2.3kg/4.6kg

    3.2kg/5.6kg

    5kg/10kg

    8kg/14.5kg

    10kg/19kg

    5kg/8.4kg

    7.4kg/12kg

    9kg/14kg
